Bitumen quality control tests are used to evaluate binder consistency, temperature-related behavior, flow characteristics, safety, purity, and changes caused by aging. Tests such as penetration, softening point, ductility, viscosity, and flash point each describe only one aspect of bitumen behavior. Product approval should therefore be based on a combination of laboratory results, the applicable specification, and actual project conditions.
A grade designation such as Bitumen 40/60, Bitumen 60/70, or Bitumen 80/100 provides initial information about the penetration range and relative consistency of the binder. However, the grade name alone is not sufficient to confirm overall product quality.
Two bitumen samples may have similar penetration values but differ in softening point, viscosity, ductility, purity, aging resistance, or production consistency. Buyers, contractors, consultants, and quality-control laboratories should therefore review the test method, test conditions, specification limits, sampling date, batch number, and reference standard in addition to the reported grade.
This article explains the main bitumen quality-control tests, what each result indicates, the standards commonly used, and the key points that should be reviewed in a Certificate of Analysis or COA.
Related reading: To understand the relationship between bitumen grade, technical specifications, packaging, delivery, and commercial pricing, read the
Iran Bitumen Price Guide .
Why Is Bitumen Quality Control Important?
Bitumen is one of the principal components of asphalt mixtures, and its behavior directly influences workability, stability, durability, and pavement performance. A binder that does not comply with the project specification may contribute to rutting, cracking, aggregate loss, inadequate coating, mixing difficulties, or reduced pavement service life.
Bitumen quality control is performed to:
- Confirm compliance with the declared grade
- Evaluate production consistency between batches
- Identify contamination, volatile materials, or undesirable components
- Assess binder behavior at different temperatures
- Control safety during storage, transportation, and heating
- Evaluate changes caused by heat and aging
- Match the product with the project specification, climate, and application
Important Technical Note
A single laboratory result cannot confirm the complete quality of bitumen or its suitability for a specific project. Technical decisions should be based on combined results, the reference standard, asphalt-mix design, climate, traffic, construction method, and project requirements.
What Is a Bitumen Certificate of Analysis?
A Certificate of Analysis, commonly referred to as a COA, is a document reporting the laboratory test results for a product sample, production batch, or shipment. It commonly identifies the product, grade, batch number, testing date, test methods, specification limits, and measured results.
A technically reviewable COA should include:
- Exact product name and grade
- Batch number or sample identification
- Production and testing dates
- Laboratory identification
- Test method, such as ASTM, AASHTO, or EN
- Unit of measurement for each parameter
- Required specification range
- Actual laboratory result
- Approval or signature of the quality-control authority
General statements such as “complies with standard” are not sufficient for a complete technical review unless the test method, specification limits, and actual measured values are also provided.
Summary of the Main Bitumen Tests
| Test |
What Does It Evaluate? |
Common Standard |
| Penetration |
Binder consistency and relative hardness under specified conditions |
ASTM D5/D5M |
| Softening Point |
Relative softening temperature using the ring-and-ball method |
ASTM D36/D36M |
| Ductility |
Extension of the specimen before breaking under specified conditions |
ASTM D113 |
| Viscosity |
Resistance of the binder to flow at a specified temperature |
ASTM D4402/D4402M or another applicable method |
| Flash Point |
Temperature at which vapours can ignite momentarily under the test conditions |
ASTM D92 |
| Solubility |
Soluble bituminous content and possible insoluble impurities |
ASTM D2042 |
| RTFOT |
Short-term changes caused by heat and air exposure |
ASTM D2872 |
| Loss on Heating |
Mass change and volatility after controlled heating |
Applicable product specification or aging method |

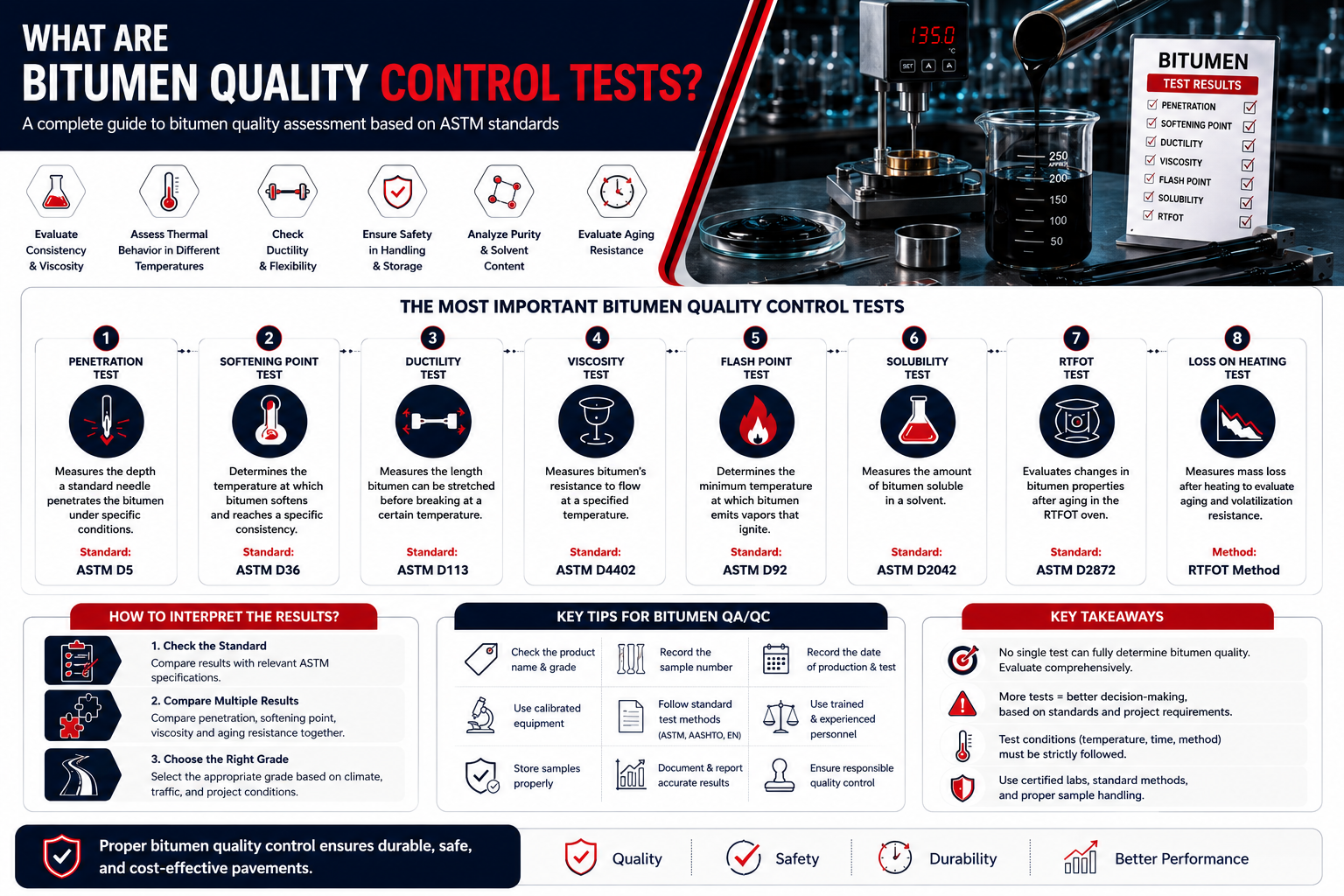

This infographic summarizes the main bitumen quality-control tests. Penetration, softening point, ductility, viscosity, flash point, solubility, RTFOT, and loss on heating evaluate different aspects of binder consistency, thermal behavior, safety, purity, and resistance to aging. No individual test result is sufficient by itself to confirm overall quality or select the correct binder for a project.
What Is the Bitumen Penetration Test?
The penetration test is one of the most widely recognized methods for classifying penetration-grade bitumen. It measures the depth to which a standard needle penetrates the binder under controlled test conditions.
Common test conditions for many penetration-grade binders include a temperature of 25°C, a total load of 100 g, and a loading time of 5 seconds. However, the exact conditions stated in the reference method or COA must always be confirmed before comparing results.
Penetration is normally reported in units of 0.1 mm. For example, a penetration value of 65 corresponds to 65 tenths of a millimetre, equivalent to 6.5 mm.
General Interpretation of Penetration
- A lower penetration value normally indicates a harder binder.
- A higher penetration value normally indicates a softer binder.
- The result is sensitive to temperature, loading time, load, specimen preparation, and test procedure.
- A higher or lower value does not automatically mean better or worse quality.
The grades Bitumen 40/60 , Bitumen 60/70 , and Bitumen 80/100 are named according to their penetration ranges.
What Is the Bitumen Softening Point Test?
Bitumen is a thermoplastic and viscoelastic material and does not have one sharply defined melting point like a pure crystalline substance. The softening-point test therefore determines a conventional temperature at which the binder softens and deforms to a specified extent under the ring-and-ball test conditions.
The test is commonly used to compare the relative response of binders to increasing temperature and to monitor production consistency.
Higher softening point: Generally indicates greater resistance to softening under the defined laboratory conditions.
Interpretation limitation: A higher softening point alone does not guarantee superior pavement performance.
Binder composition, polymer modification, oxidation, and aging can all affect the softening-point result. For Polymer Modified Bitumen , elastic recovery and rheological tests may also be required in addition to penetration and softening point.
What Is the Bitumen Ductility Test?
Ductility measures the distance a bitumen specimen can be stretched before breaking under specified conditions. The result is generally reported in centimetres.
The test provides information about the tensile-extension behavior of the binder specimen. However, it should not be interpreted as a direct measurement of pavement flexibility or as a complete prediction of cracking resistance.
Ductility results are sensitive to temperature, pulling speed, specimen geometry, specimen preparation, and binder type. Two results should only be compared when the same test conditions and method have been used.
Ductility and Polymer Modified Bitumen
Polymer-modified binders can behave differently from conventional penetration-grade bitumen. For some modified products, elastic recovery and rheological tests may provide more relevant performance information than conventional ductility alone.
What Is the Bitumen Viscosity Test?
Viscosity describes a material’s resistance to flow. Bitumen becomes less viscous as temperature increases and more viscous as temperature decreases. Every viscosity result must therefore be reported together with the test temperature, method, and unit.
Viscosity testing supports decisions related to pumping, handling, mixing, aggregate coating, and asphalt compaction.
| Area |
Why It Matters |
| Pumping and Transfer |
The binder must flow through pumps and transfer lines at a suitable temperature. |
| Aggregate Coating |
Unsuitable viscosity may prevent uniform coating of the aggregate. |
| Asphalt Compaction |
Compaction temperature must be compatible with the mixture and project specification. |
| Product Consistency |
Unexpected viscosity changes may indicate production variation or aging. |
Viscosity-control methods are not identical for conventional bitumen, emulsions, and cutbacks. In bitumen emulsion , the water-bitumen dispersion influences flow behavior. In cutback bitumen , petroleum solvent content has a major effect on viscosity and test selection.
What Is the Bitumen Flash Point Test?
Flash point is the temperature at which vapours released from a sample can ignite momentarily when exposed to an ignition source under the specified test conditions.
It is primarily a safety parameter for heating, storage, loading, and transportation. It should not be confused with a direct pavement-performance test.
Unexpectedly low flash point: May indicate volatile contamination or inappropriate material composition and should be investigated.
Use of the result: Supports safety controls and temperature limits; it does not directly determine the correct pavement grade.
Safety Warning
Flash point must not be treated as the permitted operating temperature. Storage and heating temperatures should be established from the supplier’s instructions, Safety Data Sheet, equipment design, operating procedures, and applicable safety regulations, with an appropriate safety margin.
What Is the Bitumen Solubility Test?
Solubility testing evaluates the proportion of bituminous material that dissolves in a specified solvent and provides an indication of possible insoluble impurities.
High solubility generally indicates that most of the sample consists of soluble bituminous material. An unusually high level of insoluble matter may be associated with mineral contamination, foreign materials, or undesirable components.
Modified binders or products intentionally containing solid additives may require a different method or a different interpretation of the solubility result.
What Is the RTFOT Aging Test?
During asphalt-mixture production, bitumen is exposed to heat and air. These conditions may cause evaporation of lighter components, oxidation, increased viscosity, and binder hardening.
The Rolling Thin-Film Oven Test, or RTFOT, is used to simulate part of the short-term aging that occurs during asphalt mixing and construction.
After RTFOT, mass change and the properties of the aged residue may be evaluated. Depending on the specification system, the laboratory may measure retained penetration, ductility, viscosity, elastic recovery, or rheological properties.
Why Is Aging Evaluation Important?
A binder may comply with its original specification before heating but show excessive changes after short-term aging. Testing the aged residue provides a more complete view of its stability during asphalt production.
Loss on Heating and Mass Change
Some specification systems measure the change in sample mass after controlled heating. A reduction in mass may be associated with the loss of volatile materials, while oxidation and other processes may also influence the measured change.
Mass change should be interpreted together with changes in penetration, ductility, viscosity, or other residue properties. The loss-on-heating value alone does not provide a complete prediction of field performance.
Specialized Tests for Polymer Modified Bitumen
Polymer modified bitumen has a structure and behavior that differ from conventional penetration-grade bitumen. Penetration, softening point, and ductility alone are therefore not sufficient for a complete assessment.
Depending on the product standard and project specification, additional tests may include:
- Elastic recovery
- Storage stability or phase separation
- Rotational viscosity
- Dynamic Shear Rheometer testing
- Properties after RTFOT aging
- Bending Beam Rheometer testing under the PG system
- Project-specific performance tests
For more information about modified binders, read What Is Polymer Modified Bitumen?
Are All Types of Bitumen Evaluated Using the Same Tests?
No. The required test program depends on product type, production method, specification, and final application.
| Product Type |
Examples of Important Tests |
| Penetration-Grade Bitumen |
Penetration, softening point, ductility, flash point, solubility, viscosity, and aging |
| Polymer Modified Bitumen |
Basic tests plus elastic recovery, stability, viscosity, and rheological testing |
| Bitumen Emulsion |
Viscosity, particle charge, storage stability, residue, breaking behavior, and recovered-binder properties |
| Cutback Bitumen |
Viscosity, flash point, distillation, volatile content, and residual-binder properties |
Using one identical COA template for every bituminous product is not technically accurate. Each product should be evaluated according to its specific standard and performance requirements.
How Should Bitumen Test Results Be Interpreted?
Laboratory results should be reviewed at three levels:
- Compliance with the specification: Is the result within the required limits for the grade or project standard?
- Internal consistency of the results: Do penetration, softening point, viscosity, ductility, and aging values show technically consistent behavior?
- Suitability for the project: Is the binder suitable for the climate, traffic, asphalt-mix design, aggregate, and construction method?
A product may comply with a general material standard but still be unsuitable for a specific project. Differences among ASTM, EN, and AASHTO procedures may also make direct comparison of some reported values technically invalid.
Common Mistakes When Reviewing a Bitumen COA
- Comparing results without checking the test method
- Ignoring the unit of measurement
- Assuming that a higher number is always better
- Reviewing penetration while ignoring other parameters
- Accepting a generic COA instead of batch- or shipment-specific results
- Ignoring the production, sampling, and testing dates
- Directly comparing ASTM and EN results without checking method differences
- Assuming laboratory compliance alone guarantees pavement performance
- Ignoring packaging, handling, storage, and transportation conditions
Need technical product information? To provide your required grade, reference standard, order volume, packaging, test documentation, and delivery conditions, use the
Dejpa Contact Page .
What Documents Should Be Reviewed Before Purchasing Bitumen?
| Document or Information |
Why It Matters |
| COA |
Reports actual laboratory results for the sample or production batch |
| TDS |
Provides general technical specifications and product characteristics |
| SDS |
Provides safety, handling, storage, transportation, and emergency information |
| Project Specification |
Defines required test methods and acceptance limits |
| Packaging and Delivery Conditions |
Help prevent contamination, mixing, excessive heating, and quality changes |
Technical quality and commercial conditions should be reviewed together. A lower quotation has value only when the grade, test results, documentation, packaging, handling, and delivery conditions meet the project requirements.
Conclusion
Bitumen quality control requires a combination of tests, each evaluating a different property. Penetration indicates relative consistency, softening point provides a conventional measure of temperature response, ductility evaluates extension before break, viscosity measures resistance to flow, and flash point supports safe handling and heating.
Solubility and aging tests also provide important information about relative purity and changes caused by heat and air. Polymer-modified, emulsified, and cutback products require test programs that are appropriate for their individual structures and specifications.
No single number defines complete bitumen quality. Reliable evaluation should be based on a valid COA, the correct test method, specification limits, consistency among results, climate, traffic, asphalt-mix design, and construction requirements.
Dejpa focuses on quality control and technical product information to help industrial buyers, contractors, and consultants evaluate bitumen beyond the product name or initial price.
Frequently Asked Questions
What is the most important bitumen quality-control test?
No single test can determine complete bitumen quality. Penetration, softening point, ductility, viscosity, flash point, solubility, and aging results should be evaluated together according to the applicable standard.
What does the bitumen penetration test measure?
It measures the relative consistency of bitumen under specified conditions. A lower penetration value generally indicates a harder binder, while a higher value generally indicates a softer binder.
Is softening point the same as the melting point of bitumen?
No. Bitumen does not have one sharply defined melting point. Softening point is a conventional temperature determined using the ring-and-ball method.
Is higher ductility always better?
No. The result must be reviewed against the product specification and together with other properties. For some polymer-modified binders, elastic recovery and rheological tests may be more relevant.
What does flash point indicate?
Flash point is primarily a handling and heating safety parameter. An abnormal result may indicate volatile contamination, but it does not independently predict pavement performance.
What does RTFOT simulate?
RTFOT simulates part of the short-term aging caused by heat and air exposure during asphalt mixing and construction.
How should a bitumen COA be reviewed?
Check the product name, batch number, test date, test method, units, specification limits, actual results, and laboratory identification. The COA should relate to the relevant production batch or shipment.
Does COA compliance guarantee pavement performance?
No. A COA evaluates binder properties, while pavement performance also depends on aggregate, binder content, mix design, production, transportation, compaction, climate, drainage, and traffic.
